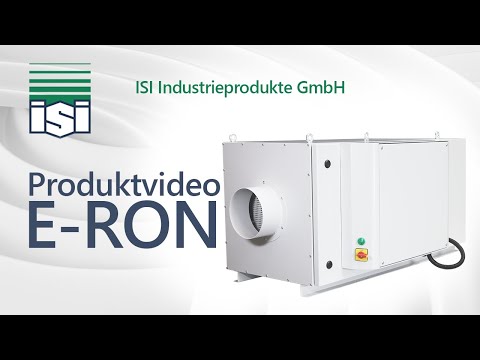

ELBARON | Oil Mist Separator

ISI Gruppe | E-RON 4 D2 TR - 2600 m³/h - 400 V

Extraction capacity of filter unit at spigot*: 2600 m³/h (free-eye)
Total power consumption*: 0.62 kW
Operating voltage: 400 V, 50/60 Hz,3Ph+PE
Noise level*: 66 db(A)
Dimensions L/W/H in mm: L 111 / W 508 /H 545
Colour: RAL 7035
Weight: 111 kg
Manufacturer: ISI Industrieprodukte GmbH

*Depending on filter equipment
Special voltage or special colour on request

NEW: Pre-filter system (optional)

Application:
Extraction of oil mist, emulsion mist (for emulsions with higher oil contents) and smoke, for small to very large machine workrooms | Oil mist separator.

Your advantages of the ELBARON series:
- 18 unit variants available
- Direct from the manufacturer
- ISI-TRONIC as standard (digitalised filter control)
- Electronically controlled EC fan as standard
- Speed and air flow rate adjustable
- Simplex (single-stage) or duplex (two-stage) available
- Wide range of air flow rates available
- Adaptable to pollutant load and air performance requirements
- Large range of mounting and connection accessories
- Quality Made in Germany
Codpfxopkwauo Agqjri

We have developed the ELBARON® filter series for use in machining operations with pure oil or for separating oil mist and smoke (oil mist separator). For many years now, the digital electrostatic air filters of the ELBARON® series have been among the most efficient filter units on the market and are in use worldwide. Our filter units are already digitalised as Option and can be controlled, for example, with a laptop.

The ELBARON® unit series comprises 18 unit variants and can be optimally designed for your application in terms of size and performance. ELBARON® units impress with their long service life and absolute functional reliability. Our electrostatic filter cells are dimensioned in such a way that the best possible filter efficiencies, service lives and trouble-free operation are achieved under economic aspects.
