IVECO AD360X54Z HR OFF 8x4 Intarder AHK

For vehicle inquiries, Mr. Seidel will be pleased to assist you (by phone).

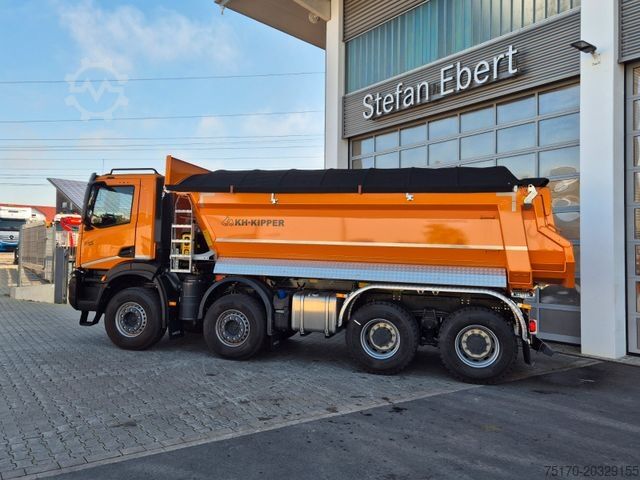

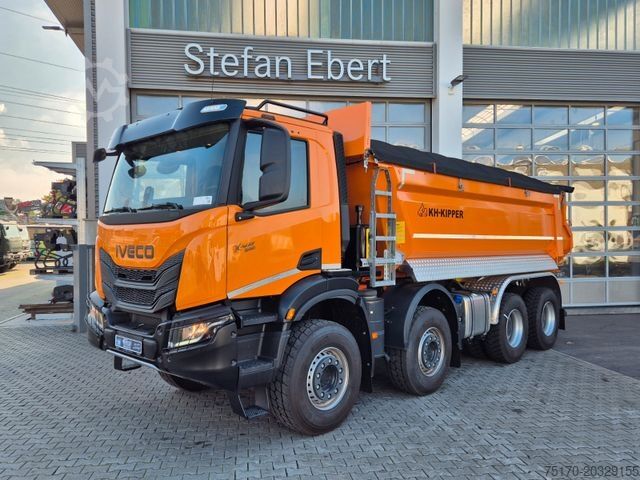

----Iveco X-Way AD360X54Z HR OFF 8x4 Rear Tipper----

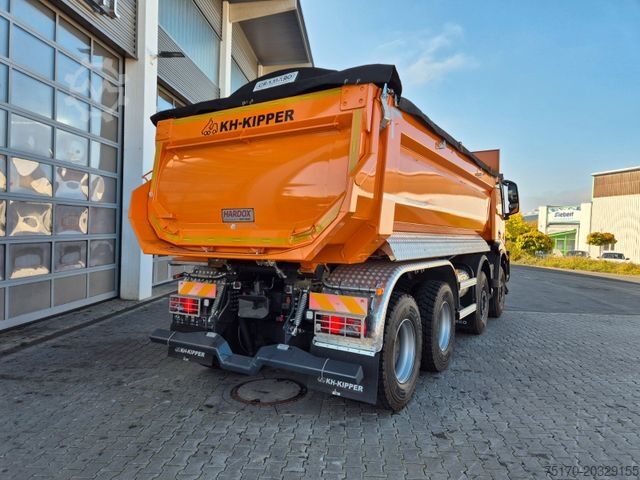

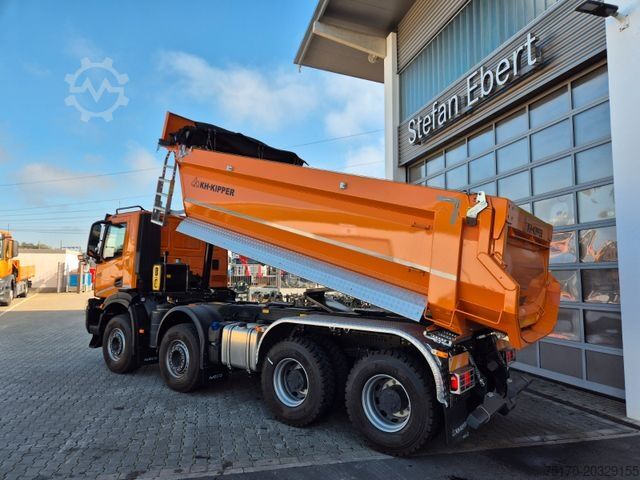

* Body: KH rear tipper / half-pipe tipper body
* External length: approx. 6,000 mm
* Internal width approx.: 2,330 mm
* Side wall height: 1,350 mm
* Load volume: approx. 16.5 m³
* Floor: 6 mm, Hardox 450 steel
* Front wall: 5 mm, Hardox 450 steel, inclined 10 degrees forward
* Side walls: 5 mm, Hardox 450 steel

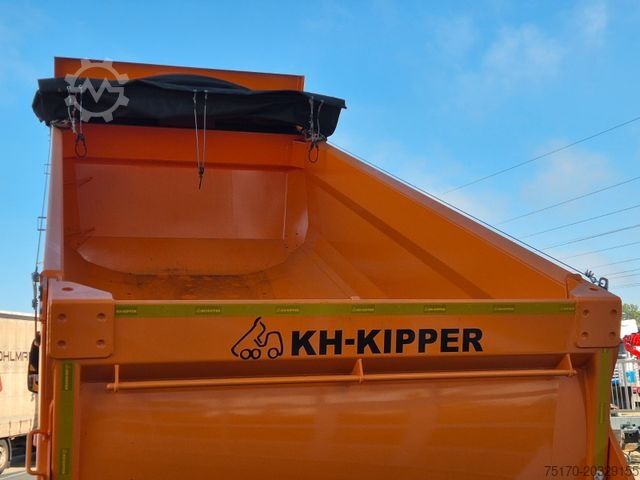

* Tipper body in special omega shape with aluminum deflector plates on left and right (easily replaceable)

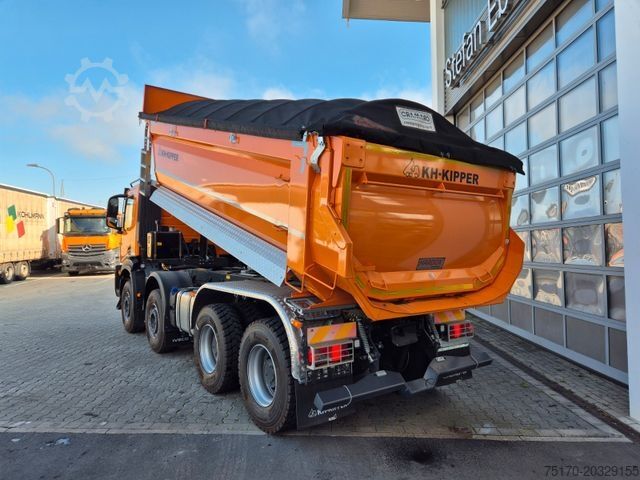

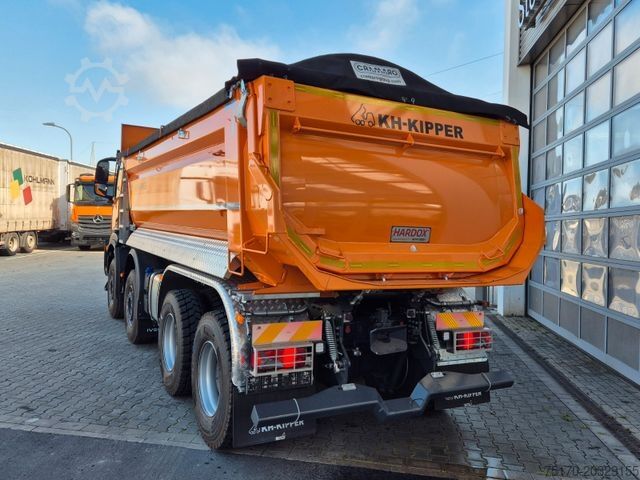

* Rear wall: 6 mm, Hardox 450 steel, swinging, internal, opens automatically during tip operation, with rear discharge chute at the same height as the tipper floor, without side metering slats, with additional handle on the pendulum flap

* CA axle configuration 8x4, four axles, two driven axles
* CT cab version – AD MY DR, steering SX (left-hand drive)
* EM emission level: Europe
* EP engine: 540 C13 Cursor 13, 540 HP
* GT transmission: TX-12M 12-speed HiTroniX, automated
* MT gross vehicle weight: 32–26 t
* RT drive axle version: HR-TM tandem medium, outer planetary axle (HR)
* SU suspension: MEC mechanical suspension
* TF brakes: DIS-DIS (disc/disc)
* US application: MIXED, for road and light off-road use
* VE vehicle version: CABINAT standard chassis with cab
* VS vehicle set-up: OFF WB, wheelbase 4,250 mm
* 06366 rear engine PTO for pump connection
* 00640 mechanical roof hatch
* 72629 fog lamps including cornering/turning light
* 01627 IVECO logo in gunmetal grey
* 00632 transparent sun visor, mounted outside on the cab roof
* 02474 rotating beacon pre-installation
* 79468 flat roof painted in cab color
* 72537 hot water circulation pump, suitable as rest heater; residual engine coolant heat is used and circulated
* 78563 air horn behind bumper (compressed air)
* 14531 reinforced front stabilizer bar
* 72260 paver operation spring, 60mm
* 02358 rear shock absorbers
* 05365 without jack
* 00191 radiator cover under bumper for heavy off-road use
* 78713 battery charging socket, terminals
* 07805 trailer coupling, Rockinger brand
* 04875 rear frame overhang, 685 mm
* 06157 trailer coupling, 50 mm, 200 kN
* 00351 edge protection at end of frame
* 06032 rear axle ratio: 3.79
* 06151 end cross member, D-value: 200 kN
* 04572 extension module for auxiliary drive control
* 14522 adaptive cruise control (ACC)
* 02548 side marker lights
* 78484 emergency brake assist (AEBS)
* 78287 lane departure warning system (LDWS)
* 75181 reverse warning buzzer, deactivatable
* 05108 warning beacon
Iedpfx Adsxpp Adoxeih
* 00237 retarder/intarder for ZF transmissions or Allison automatic transmission
* 07888 electronic stability program (ESP)
* 02672 inspection step, left side
* 52028 RAL 2011 deep orange (IC 177)
* 30804 printed materials (user manuals)
* 20885 tires: 385/65 R22.5 – 315/80 R22.5
* 72920 operation and maintenance manual, digital
* 02659 fully automatic air conditioning
* 02759 cab air suspension
* 05629 sunblind roller for side windows (driver and passenger side)
* 02916 driver's seat HI-Comfort, multi-adjustable, air-sprung, integrated headrest and height-adjustable seatbelt, lumbar support, with three-stage cooling or heating function
* 78515 four reverse gears
* 78507 rocking mode (fre...
