High-bay warehouse Pallet racking system Shelving

SSI Schäfer PR600 / 13,40 lfm. / St.: 1.600x1.050mm / Tr.:1.800 mm

Technical data for the pallet racking system:
Racking system: SSI Schäfer
Type: PR600

Technical data for installation:
Number of rack rows: 01 pcs.
Length per rack row: approx. 13,400 mm
Number of bays / row of shelves: 07 pcs. 1,800 mm each
Number of levels plus floor level: 02 pcs.

Technical data on volume:
Pallet spaces per bay: 06 pcs.
Pallet spaces per rack row: 42 pcs.
Total pallet spaces: 42 pcs.

issued from:
Loading equipment: Euro pallet EN 13698-1
Dimensions: 1,200 x 800 x 150 mm
Total height incl. pallet: n.d.
Weight per pallet (max.): 1,400 kg

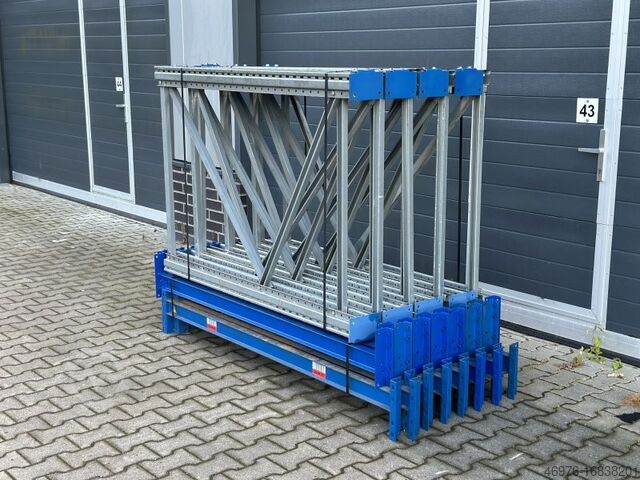

The scope of delivery includes:
08x pallet rack uprights, used
Material color: sendzimir galvanized
Frame type: P115
Profile dimensions: 100 x 100 x 2.50 mm
Incl. cross and diagonal braces,
foot plates
The uprights are pre-assembled
(bolted framework)
1,600 mm high
1,050 mm deep

28x pallet rack beams, used
Material color: RAL 5010 gentian blue
INP profile: 80 x 42 mm
Beam type: TRV1-180-08-l
Agraffe: 4 HK (hooks)
Clear width: approx. 1,800 mm
Max. load per truss pair
2,800 kg, with evenly distributed load

56x locking pin, used
Material color: sendzimir galvanized
To secure the longitudinal beams
against unintentional lifting out

32x bolt anchor, new
Manufacturer: Hilti
Type designation: HST2 M12x105/10
Design: Carbon steel, galvanized
Approved for: Cracked concrete

16x shim plate, used
Design: completely galvanized
For leveling the shelf uprights that are
are set up on uneven floors

01x Load plate
with details of bay and shelf loads,
manufacturer and commission number
Dimensions: 420 x 297 x 3 mm
Dsdpeub Nv Hefx Adcecp

Your contact persons in our company:

Mr.: Andre Evering
Mr.: Mario Klöver
Mr.: Falk Deutsch

General information about the item:
This item is only offered for collection. Any additional
transportation or shipment of this item is associated with additional
additional costs, which can be requested separately depending on the
or scope of delivery can be requested from us.
